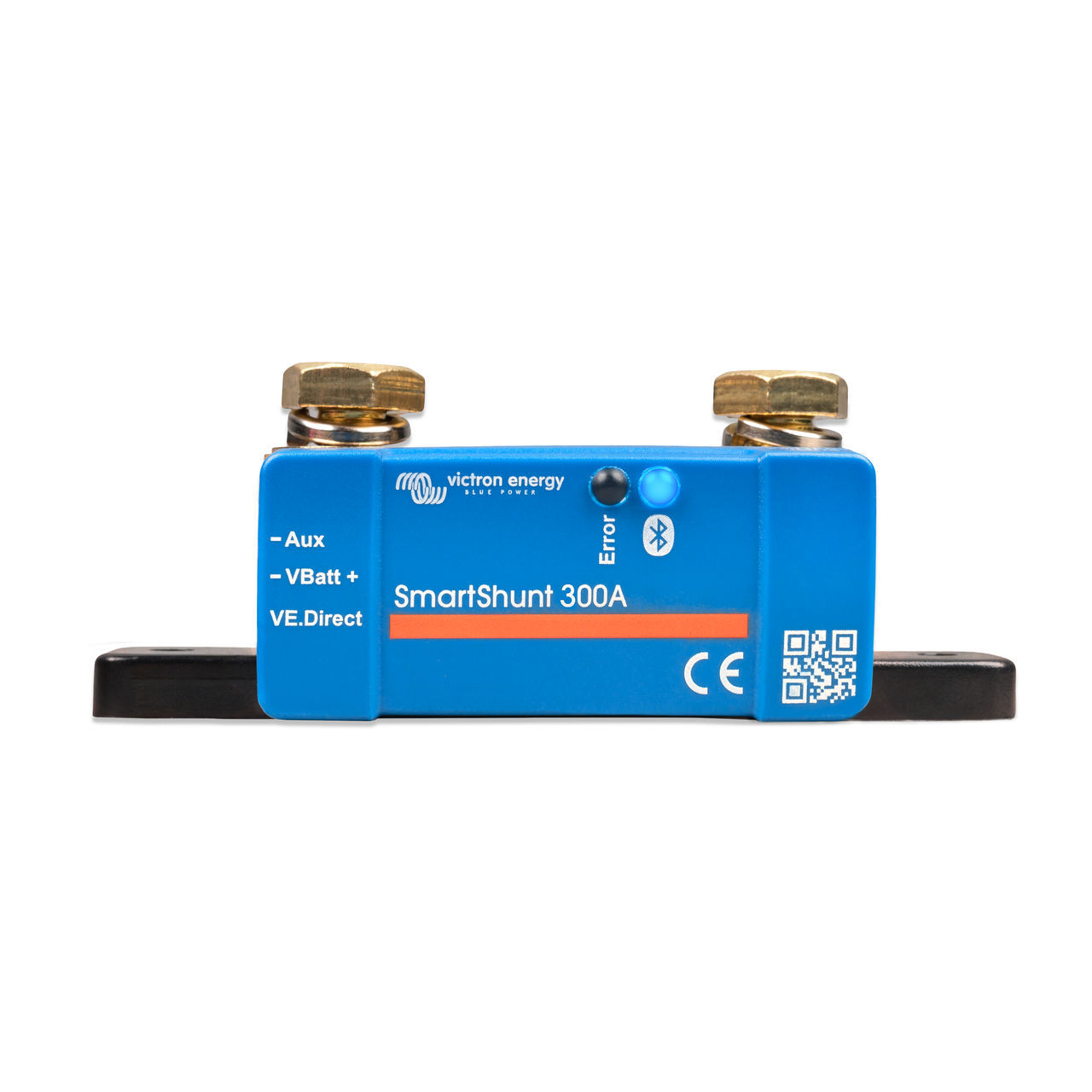

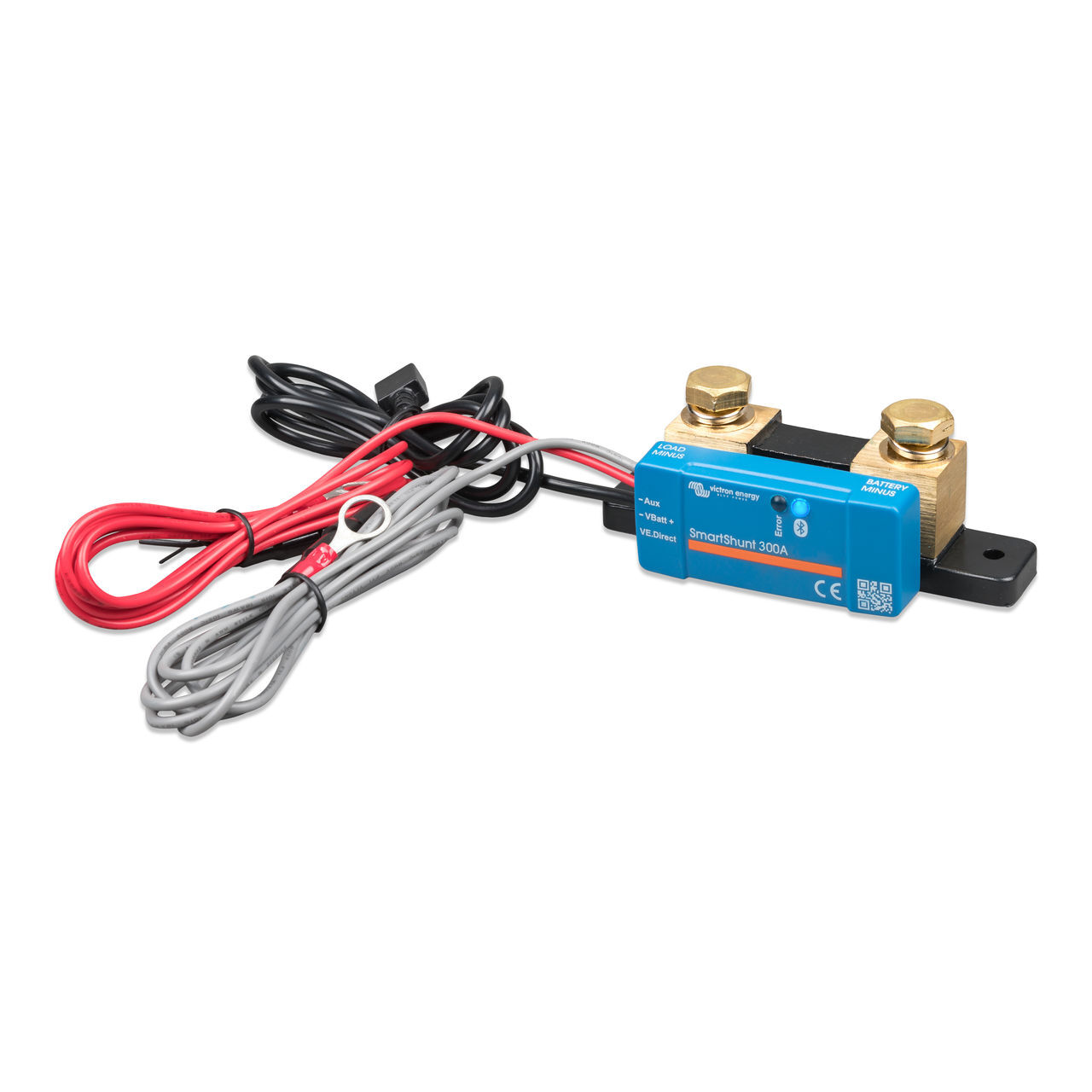

The Victron Energy SmartShunt 300A is a smart battery monitor designed for modern 12V, 24V and 48V power systems. Instead of using a traditional display, the SmartShunt sends real-time battery information directly to your smartphone or tablet through Bluetooth using the VictronConnect app.
Ideal for 4WD dual battery systems, caravans, camper trailers, marine setups and off-grid solar systems, the SmartShunt helps you accurately track battery state of charge, voltage, current draw, time remaining and historical usage data.
With its compact and waterproof-friendly design, it is perfect for installations where space is limited or where a clean, modern monitoring solution is preferred.
Key Features
- Built-in Bluetooth connectivity
- Monitor battery status via VictronConnect app
- 300A continuous current shunt
- Accurate State of Charge (SOC) readings
- Tracks voltage, amps, watts and amp-hours consumed
- Historical usage and cycle data logging
- Suitable for 12V / 24V / 48V systems
- Compact design with no separate display required
- Easy integration into 4WD, caravan and off-grid systems
Specifications
| Brand | Victron Energy |
| Product Name | SmartShunt 300A Battery Monitor |
| Model | SHU050130050 |
| Current Rating | 300A |
| Peak Current | 500A |
| Voltage Range | 6.5V – 70V DC |
| Supported Systems | 12V / 24V / 48V |
| Current Consumption | <1mA |
| Bluetooth | Yes (Built-in) |
| Connectivity | VE.Direct |
| Temperature Range | -40°C to +50°C |
| Protection Rating | IP21 |
| Dimensions | Approx. 120 x 46 x 54 mm |
| Weight | Approx. 0.4 kg |
| Compatible Batteries | Lithium, AGM, Gel, Flooded Lead Acid |
| Warranty | 5 Years |
