Product Overview

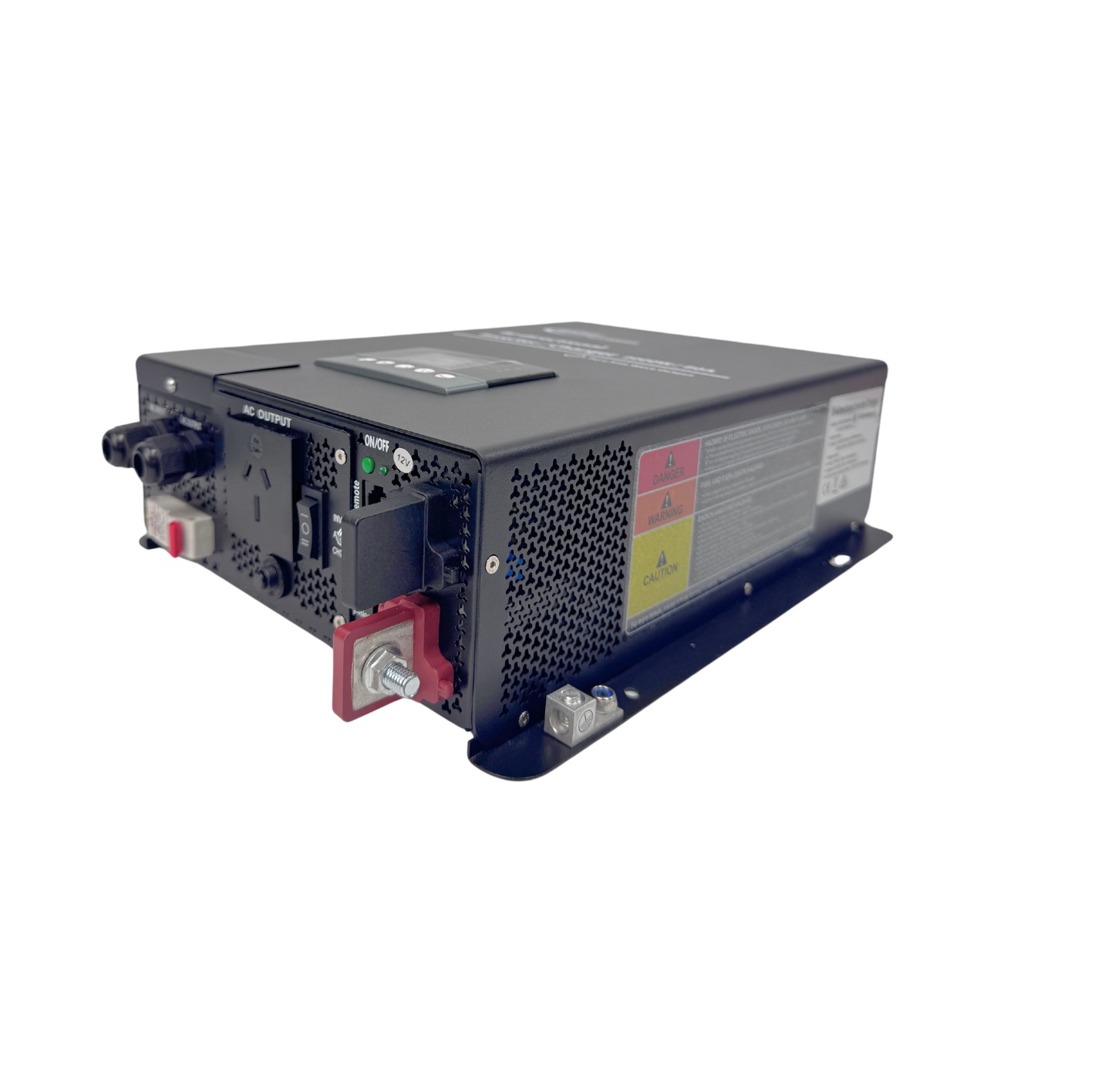

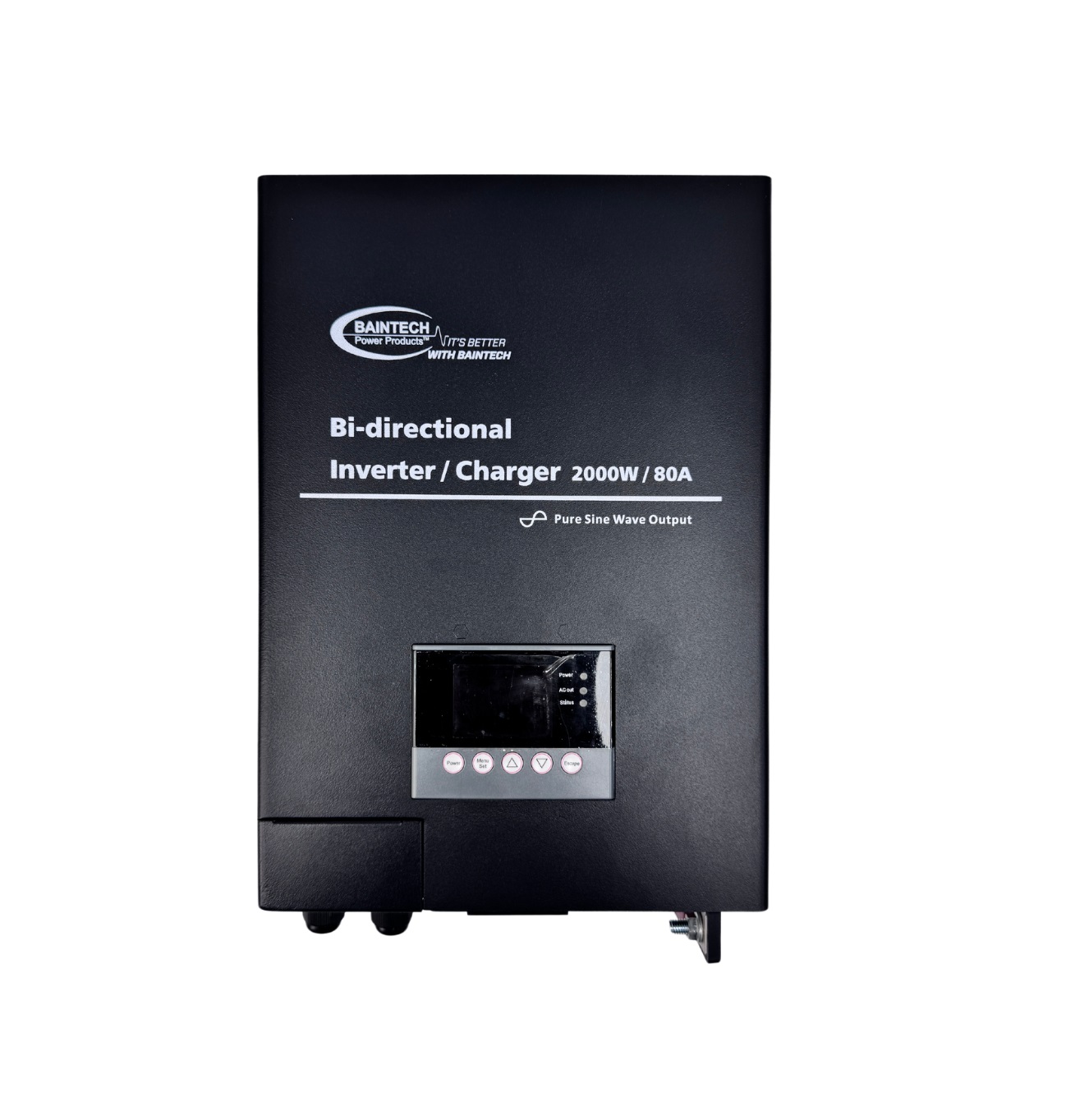

Baintech 2000W Inverter Charger with Remote Controller
Combine seamless AC power conversion with intelligent battery charging in one robust unit. Designed for off-grid, mobile or backup power systems, this unit delivers a 2000 W continuous pure sine-wave AC output, handles up to 4000 W surge, and supports multiple battery types — giving you flexibility and reliability in one compact package. With a dedicated remote controller, you gain convenient and professional control over your power system.
Why Choose It
- Pure Sine Wave Output ensures compatibility with sensitive electronics like computers, medical devices, variable-speed motors and more.
- 2000 W Continuous & 4000 W Surge caters to typical loads plus the higher start-up loads of appliances or motors.
- Integrated Inverter + Battery Charger simplifies your power installation — no need for separate units.
- Remote Controller Included gives you convenient monitoring and switching from a dash, panel or remote mount.
- Multi-Battery Compatibility (Gel, Flooded, AGM, Lithium) – great flexibility for installation in vehicles, boats, caravans or off-grid systems.
- Compact & Lightweight design makes it easier to install where space is at a premium.
- Advanced Safety Protections (under-voltage, over-voltage, overload protection) give you peace of mind.
Features At A Glance
- 2000 W AC Output (Continuous)
- 4000 W AC Surge / Peak
- Pure Sine Wave (THD < 3 %)
- Battery Charger Modes: Bulk, Absorption, Float, Recharge
- Nominal DC Input Voltage: 12.5 V
- Operating Input Range: 10.5-16.5 VDC
- >87 % Efficiency
- Supports Gel, Flooded, AGM & Lithium Batteries
- Compact Footprint – easy mounting in vans, boats, mobile rigs
- Safety Standards Compliant – meets UL 458, CSA C22.2
| Parameter | Specification |
|---|---|
| AC Output Power | 2000 W |
| AC Surge Power (Peak) | 4000 W |
| AC Output Current | 16.6 A |
| DC Input Voltage | Nominal 12.5 VDC |
| Input Voltage Range | 10.5 – 16.5 VDC |
| Efficiency | > 87 % |
| Dimensions | 387.9 × 287 × 110 mm (15.3″ × 11.3″ × 4.3″) |
| Weight | 5.9 kg (13.0 lbs) |
| Waveform | Pure sine (<3 % THD) |
| No-Load Current | <3.5 A |
| Battery Charging Voltages | Recharge: 12.8-13.6 V ; Charge: 13.8-14.8 V |
| Supported Battery Types | Gel, Flooded, AGM, Lithium |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | –20 °C to 60 °C |
| Max Operating Altitude | Up to 3 000 m |
Ideal Applications
This inverter charger is perfect for:
- Mobile work vehicles, service vans or mobile workshops
- Off-grid solar stations, caravans and 4WD touring setups
- Backup power systems at home or remote cabins
- Marine or RV installations where clean AC and charging flexibility matter
Installer & Safety Notes
- Ensure proper ventilation for heat dissipation.
- Ground the chassis to vehicle or earth ground for safe installation.
- Use remote controller to monitor system status and engage AC output.
- For larger loads, check surge capacity is sufficient for connected appliances.
- Always refer to the downloadable manual for detailed wiring, configuration and battery selection.
Warranty & Support
Baintech provides full warranty coverage and professional technical support for this product. Download the full warranty policy and product manual for detailed terms.
