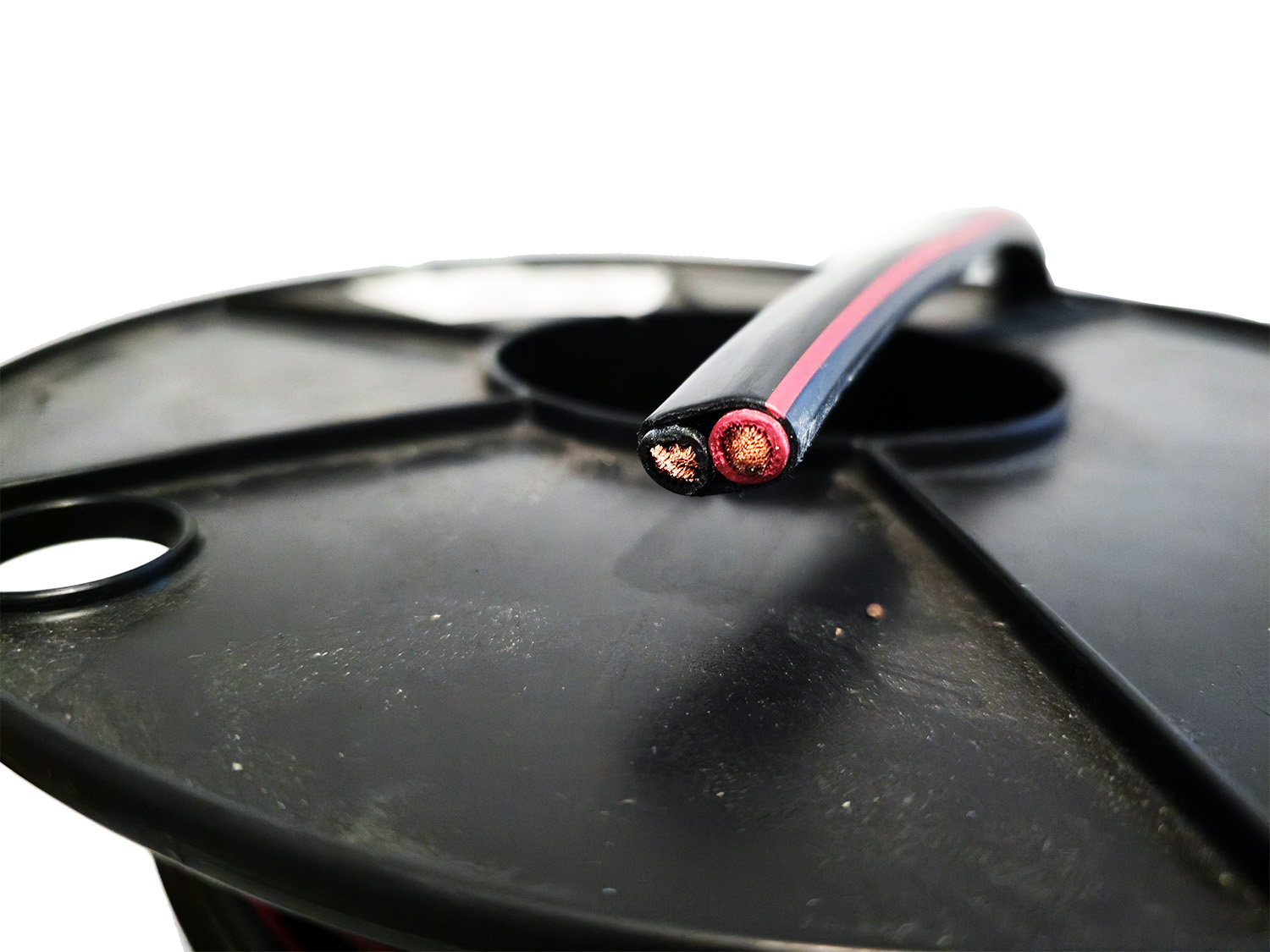

8 B&S Twin Core Automotive Cable – Red/Black Sheath (100A Rated) – Sold Per Metre
This 8 B&S twin core cable is ideal for high-current 12V and 24V installations, including dual battery systems, DC-DC chargers, inverters, winches, and battery connections in 4WD, caravan, and marine setups.

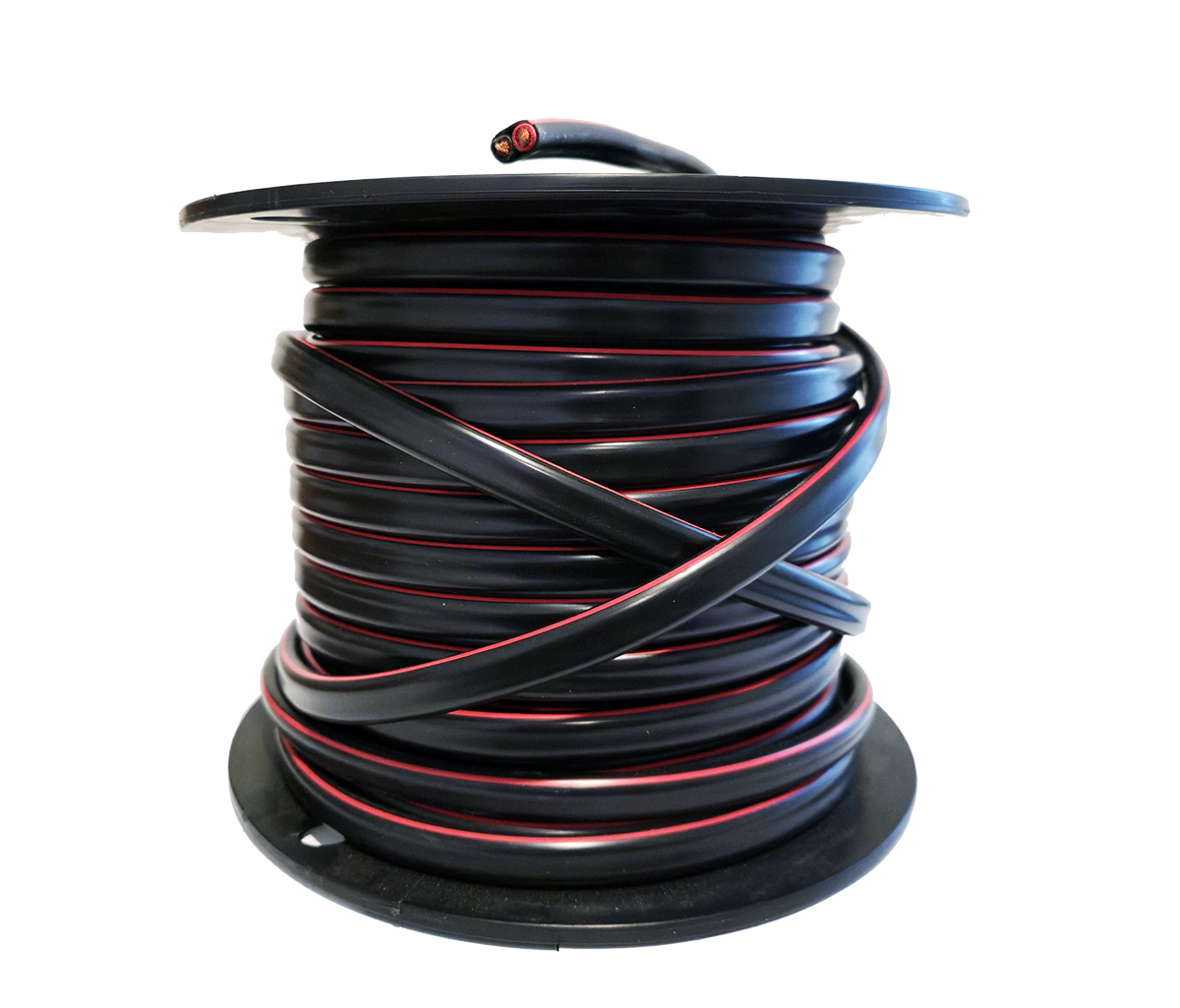

Sold per metre and cut to your selected length, simply choose the quantity required and your cable will be supplied as one continuous length. For example, selecting 10 will provide 10 metres of cable cut as a single piece.
Manufactured using 1112 strands of oxygen-free copper per core, this cable delivers excellent conductivity and flexibility while reducing voltage drop in high-load applications. The red and black outer sheath allows quick polarity identification, making installations faster and cleaner.
The cable is insulated with UV-stabilised V90HT PVC, providing durability and resistance to heat, abrasion, and harsh automotive environments.
Key Specifications
Cable Type: Twin Core Automotive Cable
Sheath Colour: Red & Black
Conductor Size: 7.71mm² (8 B&S)
Strand Count: 112 / 0.30mm Oxygen-Free Copper
Current Rating: 74A
Voltage Rating: 50V AC / 120V DC
Insulation: UV-stabilised V90HT PVC (90°C rated)
Outer Dimensions: Approx. 8mm × 13.2mm
Compliance: RoHS Compliant
