Overview
The Elecbrakes VM1 Mounted Brake Controller is a game-changer for those towing multiple trailers, eliminating the need for individual brake controllers on each trailer. By mounting directly to your vehicle, it allows you to manage up to five customised braking profiles, each tailored to different trailers and driving conditions. The Dynamic Slope Compensation feature automatically adjusts braking based on terrain, offering smooth and controlled braking whether you’re heading uphill or downhill. Designed to work with any 12V or 24V vehicle and trailer setup, the VM1 is wired directly to your power source and trailer socket, supporting 1-3 brake axles with a capacity range of 750-4500kg ATM.
Built to withstand the elements, it’s IP67 rated for dust, water, and weather resistance, making it ideal for rough conditions. The controller’s Bluetooth wireless connectivity connects directly to your smartphone and works seamlessly with Apple CarPlay and Android Auto, allowing for real-time diagnostics and control directly from your dashboard.
It’s compatible with Electric Over Hydraulic brake systems and can be mounted inside or outside the vehicle for ultimate flexibility.
Features
- Mounts directly to your vehicle, allowing you to tow multiple trailers without needing a brake controller on each one
- Create and save up to five customised braking profiles tailored to different trailers and driving conditions
- Dynamic Slope Compensation automatically adjusts braking output based on terrain, providing enhanced control whether you’re driving uphill or downhill
- Works with any 12V or 24V vehicle and trailer setup
- Wired directly to your 12/24V power source and the back of your trailer socket
- Supports 1-3 brakes axles (750-4500kg ATM)
- IP67 rated to withstand dust, water, and harsh weather conditions
- Bluetooth wireless connectivity and works seamlessly with Apple CarPlay and Android Auto
- Can be mounted inside or on the exterior of the tow vehicle
- Compatible with Electric Over Hydraulic trailer brake systems
All-New Integrated SwayControl
The VM1 & EB2 now includes SwayControl — a world-first safety innovation built directly into the brake controller. SwayControl continuously monitors your trailer’s movement in real time. If sway is detected, it applies smooth, proportional braking to bring the trailer back under control — automatically and without driver intervention.
Unlike external sway control devices, Elecbrakes delivers this protection with no extra hardware, no additional installation, and no extra cost.
Key Benefits of SwayControl
✅ Standard on Every VM1 & EB2 – Included with all new purchases.
✅ Free Upgrade for Current Owners – Unlock via the Elecbrakes app (from 1 October 2025).
✅ Seamless Integration – Works in harmony with your existing braking programs.
✅ Adjustable Sensitivity – Customise sway correction to your driving style and trailer type.
✅ Built-In Confidence – Safer, more stable towing in any condition.
Frequently Asked Questions
VM1 vs EB2 – Which one should I choose?
Elecbrakes offers two top-tier options: the EB2 Trailer-Mounted Brake Controller and the VM1 Vehicle-Mounted Brake Controller. Both are designed with unique benefits to cater to your specific towing needs, whether you’re using multiple vehicles or trailers.
With the EB2 mounted on your trailer, any vehicle can tow it without needing a brake controller installed. On the other hand, the VM1 is installed in your vehicle, allowing you to tow multiple trailers with a single vehicle.

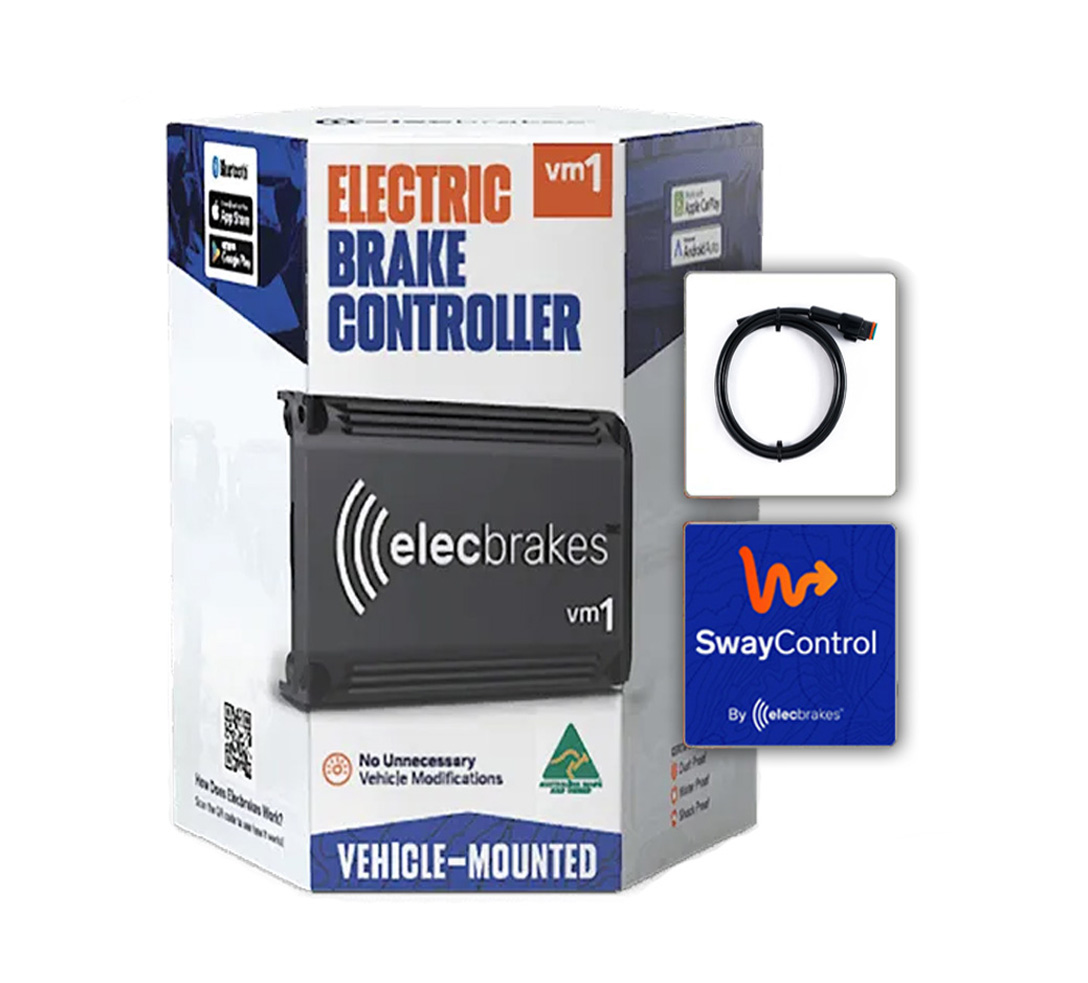

What’s included in the VM1 box?
- VM1 Electric Brake Controller.
- 1.5m wired leader.
Is Aux power required and where can I source this from?
VM1 requires a dedicated 25 Amp 12V DC, or 12 Amp 24V DC Auxiliary power circuit as its power source, utilising the brake light circuit as its trigger. VM1 supports up to 3 braked axles (24A output). It’s good practice to check for output of at least 10Vrms when sourcing auxiliary power. If a new Auxiliary circuit needs to be routed, power may be sourced from the tow vehicles battery or an ignition triggered fuse block. If using an existing power source, please ensure the amperage rating is suitable for installation if any other accessories are sharing this circuit.
Selecting a suitable mounting location
Preferably mounted to the rear of the vehicle in the boot area, rear quarter, ute tray, or vehicle underside, fastened with 4x self tapping screws (supplied). A practical location for the vehicle must be selected to allow the provided cable to reach auxiliary power supply and vehicle trailer socket wiring.
How to connect the VM1 to the Elecbrakes App
Once the VM1 is mounted, connect it to your smartphone via the Elecbrakes app for seamless control and customisation:
- Download the Elecbrakes app from the App Store (iOS) or Google Play (Android).
- Turn on your vehicle to activate the VM1. Ensure auxiliary power is available.
- Pair the VM1 with your phone by selecting your unit in the app’s device list.
- Follow the in-app prompts to configure and fine-tune your brake settings.
With the VM1 integrated into your vehicle, you can also access braking controls via Apple CarPlay or Android Auto for in-dash control.
